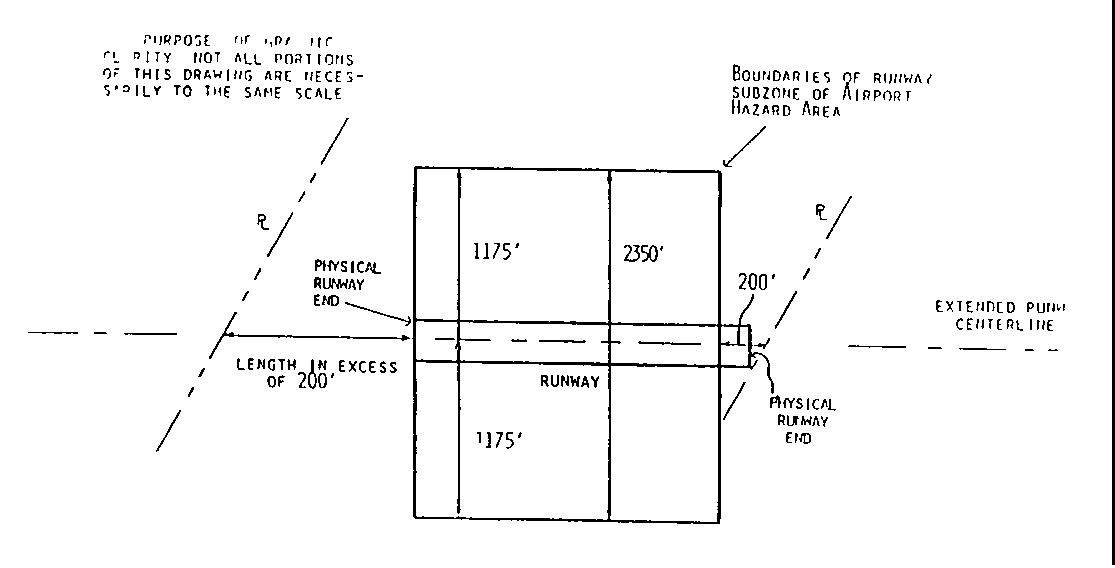

FIGURE 1

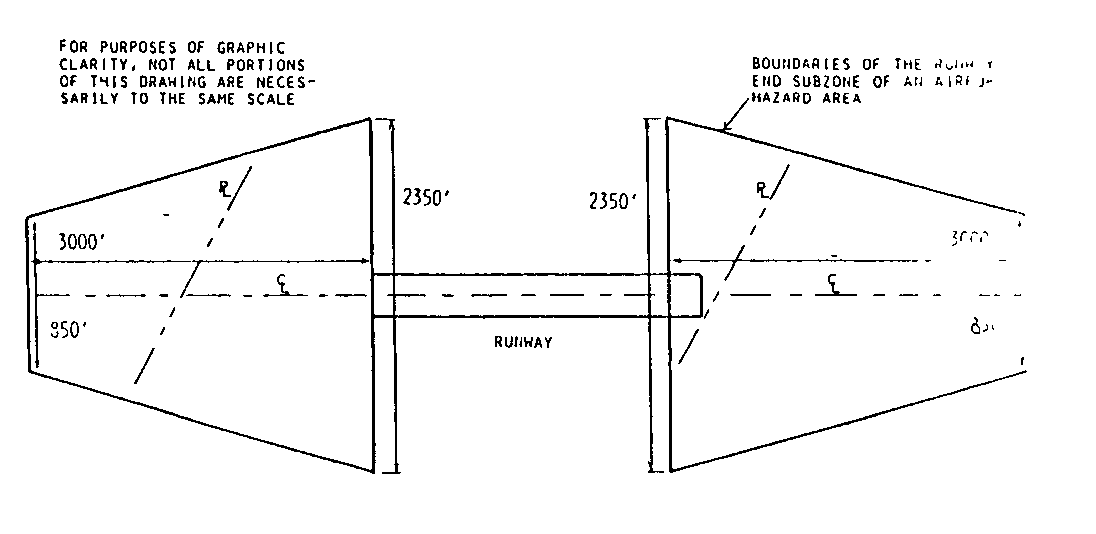

FIGURE 2 GRAPHIC DEPICTION OF THE GENERAL CONSTRUCTION OF THE RUNWAY END SUBZONE(S) OF AN AIRPORT AREA





FIGURE 3

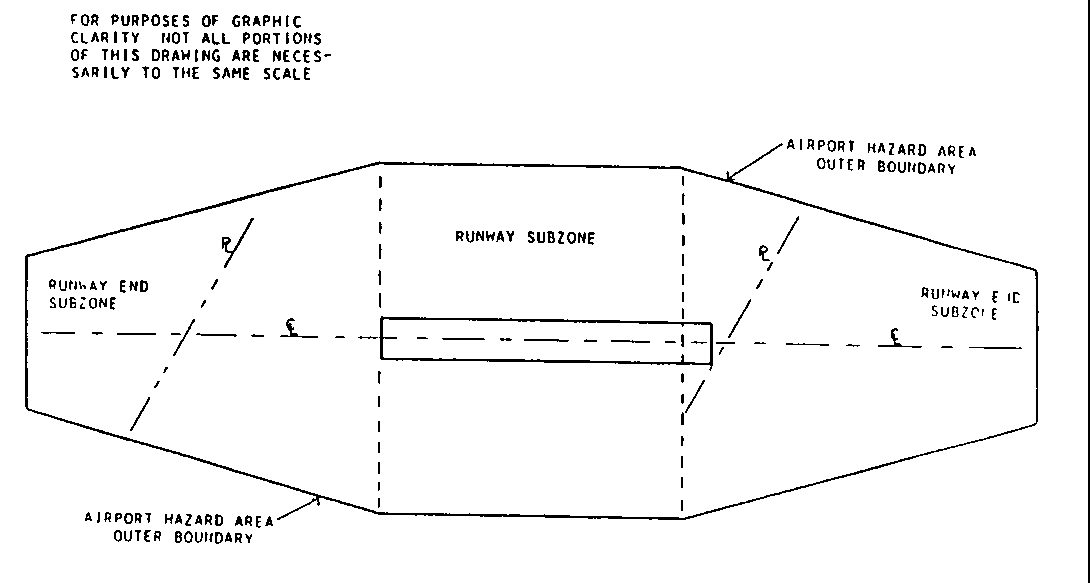

FIGURE 4. GRAPHIC DEPICTION Of THE GENERAL OVERALL CONSTRUCTION AND OUTERPOST BOUNDARIES OF AN AIRPORT HAZARD AREA





THE MINIMUM OBSTRUCTION ORDINANCE STANDARDS RELATE DIRECTLY TO THE HORIZONTAL DATUM ESTABLISHED BY RUNWAY ELEVATIONS AND NOT THE HEIGHT ABOVE THE NATURAL GRADE OF THE LAND FOR EXAMPLE AT LOCATION A AN ORDINANCE MAY REFERENCE A HEIGHT RESTRICTION X, FEET, BUT AT THAT LOCATION THE DEVELOPABLE HEIGHT RESTRICTION ABOVE THE NATURAL GRADE Of THE LAND IS ACTUALLY X, FEET. AT LOCATION B THE ORDINANCE HEIGHT RESTRICTION MAY BE X, FEET BUT THE DEVELOPABLE HEIGHT RESTRICTION MAY BE X, FEET.

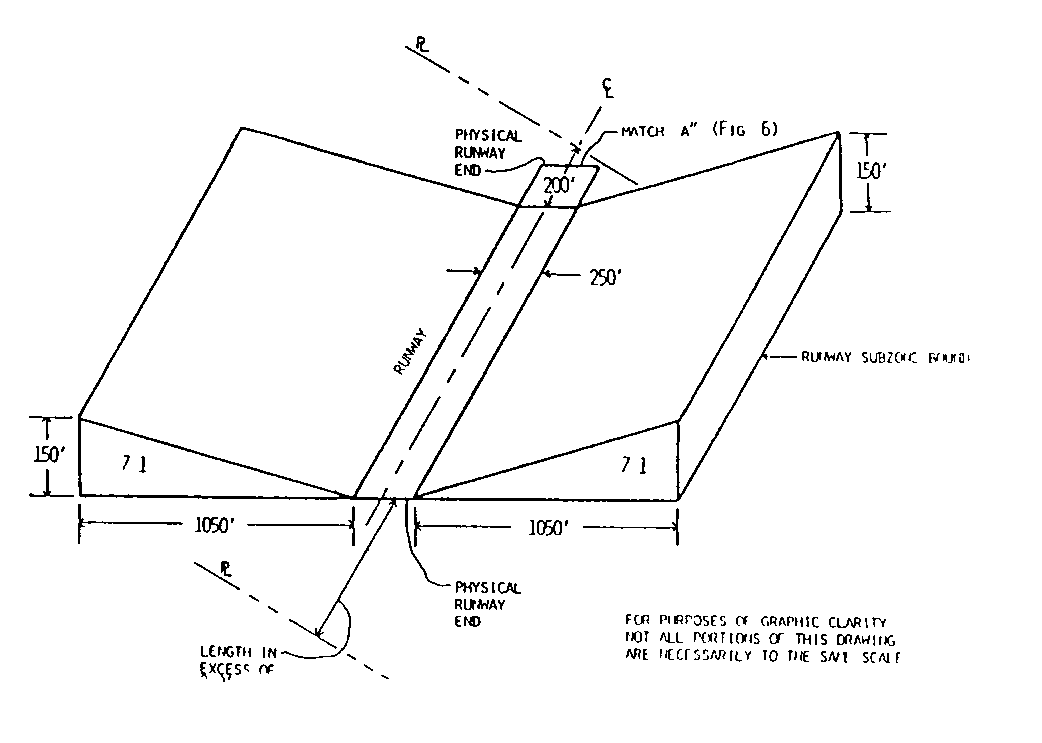

FIGURE 5 VERTICAL AND HORIZONTAL PLANES RUNWAY SUBZONE OF AIRPORT HAZARD AREA

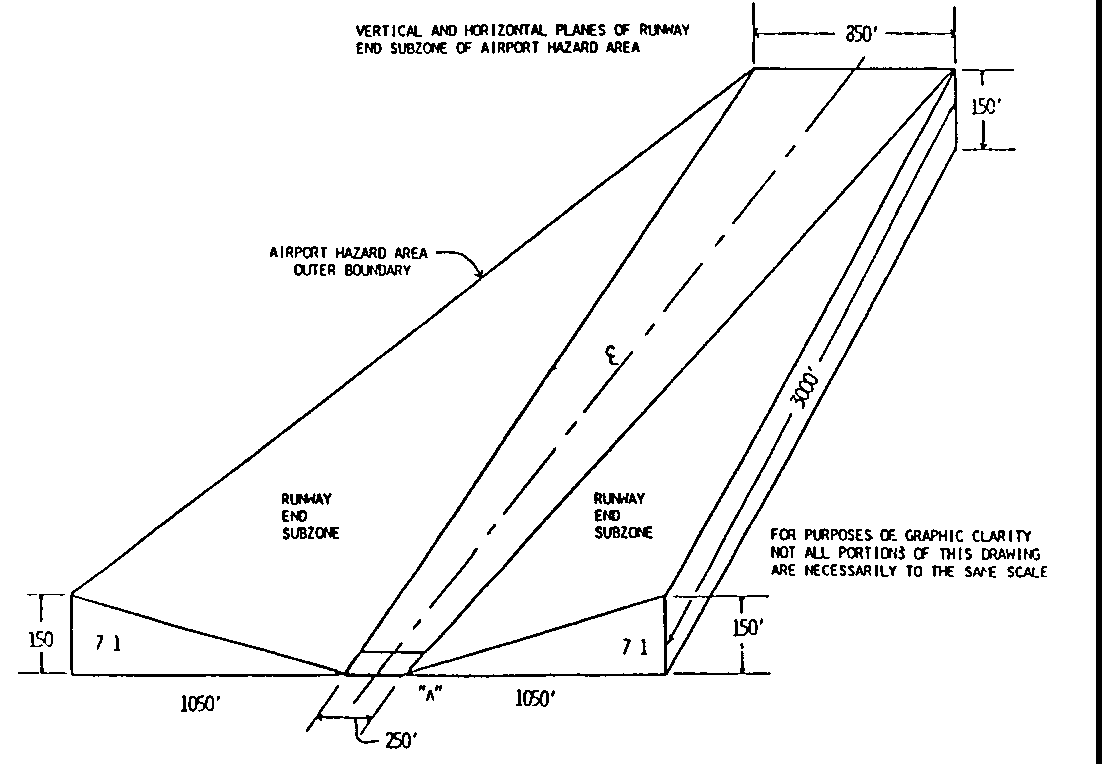

FIGURE 6
