2. The entire area of the clear sight triangle, described by points a, b, and c above, shall be designed to provide an unobstructed view across it from point b to all points 3.5 feet above the cartway along the center line from point a to points c and d.

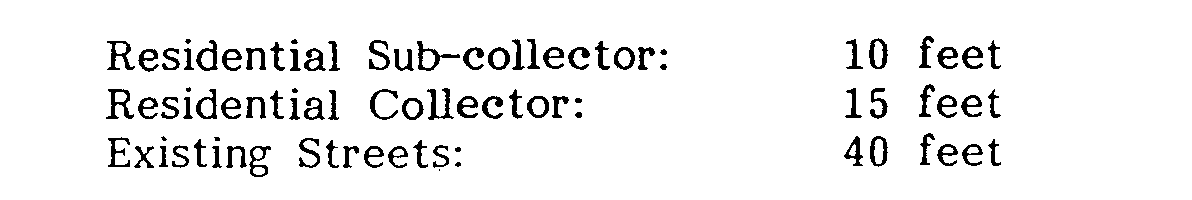

B. Curb Radius: Minimum curb or edge of pavement radius shall be determined according to the specifications for the street of higher classification in the street system hierarchy, as specified below:

C. Intersection Spacing: Proposed streets which intersect opposite sides of another street (either existing or proposed) shall be laid out to intersect either directly opposite each other, or with a minimum off- set or spacing measured from centerline to centerline as specified below.

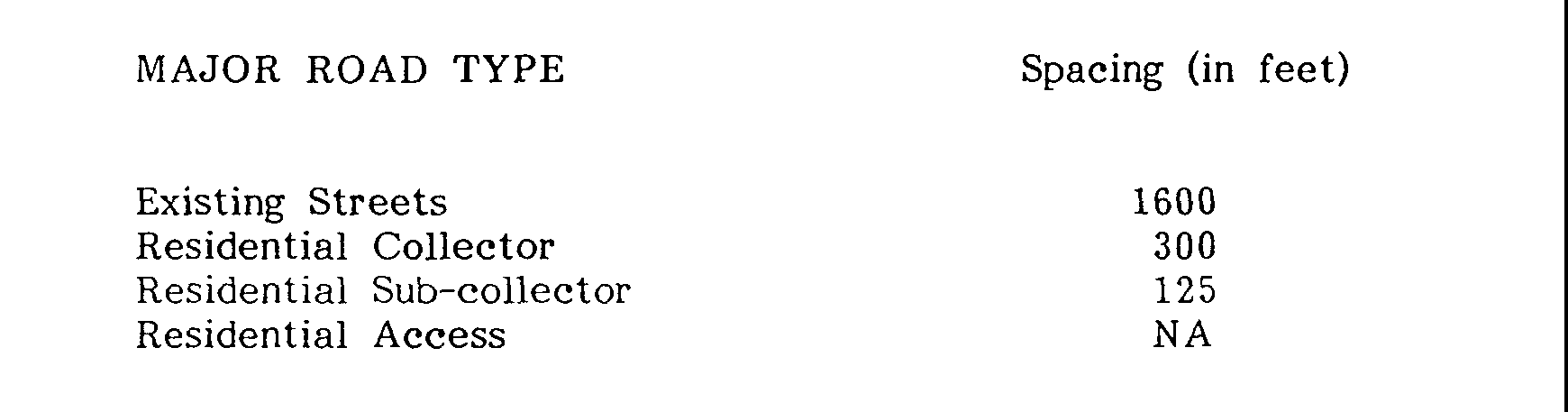

MINIMUM INTERSECTION SPACING
