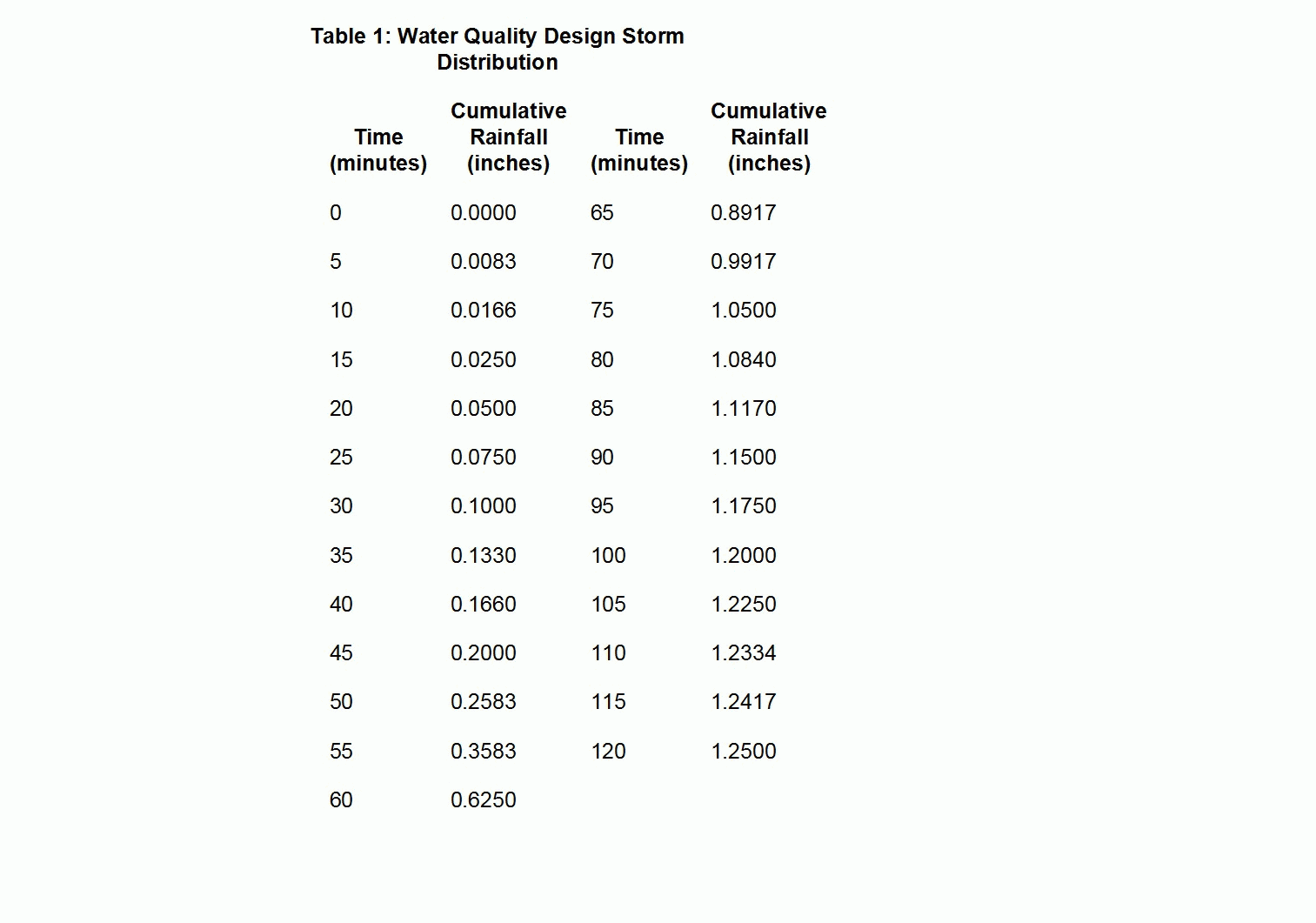

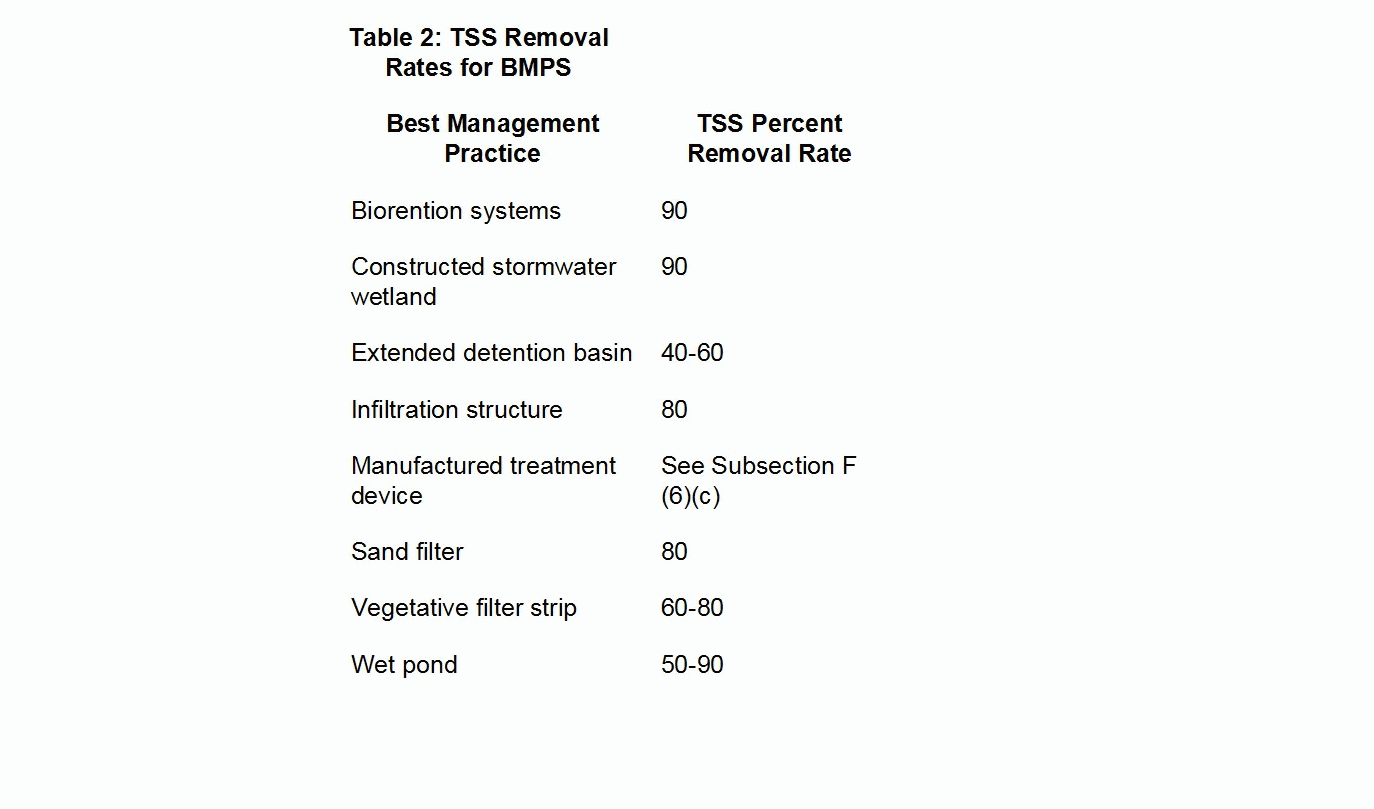

[2] For purposes of TSS reduction calculations, Table 2 below presents the presumed removal rates for certain BMPs designed in accordance with the New Jersey Stormwater Best Management Practices Manual. The BMP Manual may be obtained from the address identified in Subsection L(7), or found on the Department's Web site at www.njstormwater.com. The BMP Manual and other sources of technical guidance are listed in Subsection L(7). TSS reduction shall be calculated based on the removal rates for the BMPs in Table 2 below. Alternative removal rates and methods of calculating removal rates may be used if the design engineer provides documentation demonstrating the capability of these alternative rates and methods to the review agency. A copy of any approved alternative rate or method of calculating the removal rate shall be provided to the Department at the following address: Division of Watershed Management, New Jersey Department of Environmental Protection, P.O. Box 418, Trenton, New Jersey 08625-0418.
[3] If more than one BMP in series is necessary to achieve the required eighty-percent TSS reduction for a site, the applicant shall utilize the following formula to calculate TSS reduction:
R.= A + B - AB/100
Where:
R.= total TSS percent load removal from application of both BMPs
A.= the TSS percent removal rate applicable to the first BMP
B.= the TSS percent removal rate applicable to the second BMP
[4] If there is more than one on-site drainage area, the eighty-percent TSS removal rate shall apply to each drainage area, unless the runoff from the subareas converge on site, in which case the removal rate can be demonstrated through a calculation using a weighted average.
[5] Stormwater management measures shall also be designed to reduce, to the maximum extent feasible, the postconstruction nutrient load of the anticipated load from the developed site in stormwater runoff generated from the water quality design storm. In achieving reduction of nutrients to the maximum extent feasible, the design of the site shall include nonstructural strategies and structural measures that optimize nutrient removal while still achieving the performance standards in Subsection L(4)(f) and (g).
[6] Additional information and examples are contained in the New Jersey Stormwater Best Management Practices Manual, which may be obtained from the address identified in Subsection L(7).
[7] In accordance with the definition of FW1 at N.J.A.C. 7:9B-1.4, stormwater management measures shall be designed to prevent any increase in stormwater runoff to waters classified as FW1.
[8] Special water resource protection areas shall be established along all waters designated Category One at N.J.A.C. 7:9B, and perennial or intermittent streams that drain into or upstream of the Category One waters as shown on the USGS Quadrangle Maps or in the County Soil Surveys, within the associated HUC14 drainage area. These areas shall be established for the protection of water quality, aesthetic value, exceptional ecological significance, exceptional recreational significance, exceptional water supply significance, and exceptional fisheries significance of those established Category One waters. These areas shall be designated and protected as follows:
[a] The applicant shall preserve and maintain a special water resource protection area in accordance with one of the following:
[i] A three-hundred-foot special water resource protection area shall be provided on each side of the waterway, measured perpendicular to the waterway from the top of the bank outwards or from the center line of the waterway where the bank is not defined, consisting of existing vegetation or vegetation allowed to follow natural succession.
[ii] Encroachment within the designated special water resource protection area under Subsection L(4)(g)[8][a][i] above shall only be allowed where previous development or disturbance has occurred (for example, active agricultural use, parking area or maintained lawn area). The encroachment shall only be allowed where the applicant demonstrates that the functional value and overall condition of the special water resource protection area will be maintained to the maximum extent practicable. In no case shall the remaining special water resource protection area be reduced to less than 150 feet as measured perpendicular to the top-of-bank of the waterway or center line of the waterway where the bank is undefined. All encroachments proposed under this subparagraph shall be subject to review and approval by the Department.
[b] All stormwater shall be discharged outside of and flow through the special water resource protection area and shall comply with the standard for off-site stability in the Standards for Soil Erosion and Sediment Control Act, N.J.S.A. 4:24-39 et seq.
[c] If stormwater discharged outside of and flowing through the special water resource protection area cannot comply with the standard for off-site stability in the Standards for Soil Erosion and Sediment Control Act, N.J.S.A. 4:24-39 et seq., then the stabilization measures in accordance with the requirements of the above standards may be placed within the special water resource protection area, provided that:
[i] Stabilization measures shall not be placed within 150 feet of the Category One waterway;
[ii] Stormwater associated with discharges allowed by this section shall achieve a ninety-five-percent TSS postconstruction removal rate;
[iii] Temperature shall be addressed to ensure no impact on the receiving waterway;
[iv] The encroachment shall only be allowed where the applicant demonstrates that the functional value and overall condition of the special water resource protection area will be maintained to the maximum extent practicable;
[v] A conceptual project design meeting shall be held with the appropriate Department staff and soil conservation district staff to identify necessary stabilization measures; and
[vi] All encroachments proposed under this section shall be subject to review and approval by the Department.
(5) Calculation of stormwater runoff and groundwater recharge.
(a) Stormwater runoff shall be calculated in accordance with the following:
[1] The design engineer shall calculate runoff using one of the following methods:
[a] The USDA Natural Resources Conservation Service (NRCS) methodology, including the NRCS Equation and Dimensionless Unit Hydrograph, as directed in the NRCS National Engineering Handbook Section 4 - Hydrology and Technical Release 55 - Urban Hydrology for Small Watersheds; or
[b] The Rational Method for peak flow and the Modified Rational Method for hydrograph computations.
[2] For the purpose of calculating runoff coefficients and groundwater recharge, there is a presumption that the preconstruction condition of a site or portion thereof is a wooded land use with good hydrologic condition. The term "runoff coefficient" applies to both the NRCS methodology at Subsection L(5)(a)[1][a] and the Rational and Modified Rational Methods at Subsection L(5)(a)[1][b]. A runoff coefficient or a groundwater recharge land cover for an existing condition may be used on all or a portion of the site if the design engineer verifies that the hydrologic condition has existed on the site or portion of the site for at least five years without interruption prior to the time of application. If more than one land cover have existed on the site during the five years immediately prior to the time of application, the land cover with the lowest runoff potential shall be used for the computations. In addition, there is the presumption that the site is in good hydrologic condition (if the land use type is pasture, lawn, or park), with good cover (if the land use type is woods), or with good hydrologic condition and conservation treatment (if the land use type is cultivation).
[3] In computing preconstruction stormwater runoff, the design engineer shall account for all significant land features and structures, such as ponds, wetlands, depressions, hedgerows, or culverts, that may reduce preconstruction stormwater runoff rates and volumes.
[4] In computing stormwater runoff from all design storms, the design engineer shall consider the relative stormwater runoff rates and/or volumes of pervious and impervious surfaces separately to accurately compute the rates and volume of stormwater runoff from the site. To calculate runoff from unconnected impervious cover, urban impervious area modifications as described in the NRCS Technical Release 55 - Urban Hydrology for Small Watersheds and other methods may be employed.
[5] If the invert of the outlet structure of a stormwater management measure is below the flood hazard design flood elevation as defined at N.J.A.C. 7:13, the design engineer shall take into account the effects of tailwater in the design of structural stormwater management measures.
(b) Groundwater recharge may be calculated in accordance with the following:
[1] The New Jersey Geological Survey Report GSR-32, A Method for Evaluating Ground-Water Recharge Areas in New Jersey, incorporated herein by reference as amended and supplemented. Information regarding the methodology is available from the New Jersey Stormwater Best Management Practices Manual; at http:/www.state.nj.us/dep/njgs/; or at New Jersey Geological Survey, 29 Arctic Parkway, P.O. Box 427, Trenton, New Jersey 08625-0427; (609) 984-6587.
(6) Standards for structural stormwater management measures.
(a) Standards for structural stormwater management measures are as follows:
[1] Structural stormwater management measures shall be designed to take into account the existing site conditions, including, for example, environmentally critical areas, wetlands; flood-prone areas; slopes; depth to seasonal high water table, soil type, permeability and texture; drainage area and drainage patterns; and the presence of solution-prone carbonate rocks (limestone).
[2] Structural stormwater management measures shall be designed to minimize maintenance, facilitate maintenance and repairs, and ensure proper functioning. Trash racks shall be installed at the intake to the outlet structure as appropriate, and shall have parallel bars with one-inch spacing between the bars to the elevation of the water quality design storm. For elevations higher than the water quality design storm, the parallel bars at the outlet structure shall be spaced no greater than 1/3 the width of the diameter of the orifice or 1/3 the width of the weir, with a minimum spacing between bars of one inch and a maximum spacing between bars of six inches. In addition, the design of trash racks must comply with the requirements of Subsection L(8)(d).
[3] Structural stormwater management measures shall be designed, constructed, and installed to be strong, durable, and corrosion resistant. Measures that are consistent with the relevant portions of the Residential Site Improvement Standards at N.J.A.C. 5:21-7.3, 7.4, and 7.5 shall be deemed to meet this requirement.
[4] At the intake to the outlet from the stormwater management basin, the orifice size shall be a minimum of 2 1/2 inches in diameter.
[5] Stormwater management basins shall be designed to meet the minimum safety standards for stormwater management basins at Subsection L(8).
(b) Stormwater management measure guidelines are available in the New Jersey Stormwater Best Management Practices Manual. Other stormwater management measures may be utilized, provided the design engineer demonstrates that the proposed measure and its design will accomplish the required water quantity, groundwater recharge and water quality design and performance standards established by Subsection L(4).
(c) Manufactured treatment devices may be used to meet the requirements of Subsection L(4), provided the pollutant removal rates are verified by the New Jersey Corporation for Advanced Technology and certified by the Department.
(d) Storm sewer lines shall comply with the following:
[1] Materials used shall be constructed sewers shall be reinforced concrete pipe, ductile iron pipe or corrugated polyethylene pipe and minimum pipe size shall be 15 inches.
[2] Downstream storm sewer lines shall have a greater capacity than the combined upstream lines in all cases.
[3] The maximum design velocity shall be 15 feet per second, and the minimum design velocity shall be three feet per second. Where discharge is made into a stream bed, the allowable velocities shall be as shown in the Design of Roadside Channels, Hydraulic Design Series No.4, Department of Transportation, Federal Highway Administration, or in Design Charts for Open Channel Flow, United States Department of Commerce, Bureau of Public Roads.
[4] Ends of pipes starting or terminating in an open channel shall have suitable headwalls or flared end sections.
(e) Manholes or chambers shall be placed whenever storm sewer lines intercept branch lines, change alignment, change grade and wherever pipe sizes are altered. Additional restrictions shall include:
[1] Storm sewer structures shall be placed not more than 300 feet apart for sewers less than 48 inches in diameter. Inlets shall be located to prevent gutter flow from crossing the street pavement and to prevent runoff accumulations above curbing at all intersections and low points along the roadway.
[2] Inlets shall be provided at a cul-de-sac, as needed, to completely drain cul-de-sac gutters. Cul-de-sac gutters shall be graded toward inlets at a minimum one-percent grade.
[3] Street intersections with low points common to both streets (dish intersections) shall not be permitted.
[4] Detention basins shall have a minimum of one foot of freeboard above the water level produced by the design storage from a one-hundred-year frequency storm
(7) Sources for technical guidance.
(a) Technical guidance for stormwater management measures can be found in the documents listed at Subsection L(7)(a)[1] and [2] below, which are available from Maps and Publications, New Jersey Department of Environmental Protection, 428 East State Street, P.O. Box 320, Trenton, New Jersey 08625; telephone (609) 777-1038.
[1] Guidelines for stormwater management measures are contained in the New Jersey Stormwater Best Practices Manual, as amended. Information is provided on stormwater management measures, such as: bioretention systems, constructed stormwater wetlands, dry wells, extended detention basins, infiltration structures, manufactured treatment devices, pervious packing, sand filters, vegetative filter strips, and wet ponds.
[2] The New Jersey Department of Environmental Protection Stormwater Management Facilities Maintenance Manual, as amended.
(b) Additional technical guidance for stormwater management measures can be obtained from the following:
[1] The Standards for Soil Erosion and Sediment Control in New Jersey promulgated by the State Soil Conservation Committee and incorporated into N.J.A.C. 2:90. Copies of these standards may be obtained by contacting the State Soil Conservation Committee or any of the soil conservation districts listed in N.J.A.C. 2:90-1.3(a)4. The location, address, and telephone number of the Morris County Soil Conservation District may be obtained from the State Soil Conservation Committee, P.O. Box 330, Trenton, New Jersey 08625; (609) 292-5540;
[2] The Rutgers Cooperative Extension Services, (732) 932-9306;
[3] The soil conservation districts listed in N.J.A.C. 2:90-1.3(a)4. The location, address and telephone number of the Morris County District may be obtained from the State Soil Conservation Committee, P.O. Box 330, Trenton, New Jersey, 08625, (609) 292-5540; and
[4] The Parsippany-Troy Hills Engineering Department; (973) 263-7266.
(8) Safety standards for stormwater management basins.
(a) This section sets forth requirements to protect public safety through the proper design and operation of stormwater management basins. This section applies to any new stormwater management basin.
(b) Requirements for trash racks, overflow grates and escape provisions.
[1] A trash rack is a device designed to catch trash and debris and prevent the clogging of outlet structures. Trash racks shall be installed at the intake to the outlet from the stormwater management basin to ensure proper functioning of the basin outlets in accordance with the following:
[a] The trash rack shall have parallel bars, with no greater than six-inch spacing between the bars.
[b] The trash rack shall be designed so as not to adversely affect the hydraulic performance of the outlet pipe or structure.
[c] The average velocity of flow through a clean trash rack is not to exceed 2.5 feet per second under the full range of stage and discharge. Velocity is to be computed on the basis of the net area of opening through the rack.
[d] The trash rack shall be constructed and installed to be rigid, durable, and corrosion resistant, and shall be designed to withstand a perpendicular live loading of 300 pounds per square foot.
[2] An overflow grate is designed to prevent obstruction of the overflow structure. If an outlet structure has an overflow grate, such grate shall meet the following requirements:
[a] The overflow grate shall be secured to the outlet structure but removable for emergencies and maintenance.
[b] The overflow grate spacing shall be no less than two inches across the smallest dimension.
[c] The overflow grate shall be constructed and installed to be rigid, durable, and corrosion resistant, and shall be designed to withstand a perpendicular live loading of 300 pounds per square foot.
[3] For purposes of this Subsection L(8)(b)[3], escape provisions means the permanent installation of ladders, steps, rungs, or other features that provide easily accessible means of egress from stormwater management basins. Stormwater management basins shall include escape provisions as follows:
[a] If a stormwater management basin has an outlet structure, escape provisions shall be incorporated in or on the structure. With the prior approval of the reviewing agency identified in Subsection L(8)(c), a freestanding outlet structure may be exempted from this requirement.
[b] Safety ledges shall be constructed on the slopes of all new stormwater management basins having a permanent pool of water deeper than 2 1/2 feet. Such safety ledges shall be comprised of two steps. Each step shall be four to six feet in width. One step shall be located approximately 2 1/2 feet below the permanent water surface, and the second step shall be located one to 1 1/2 feet above the permanent water surface. See Subsection L(8)(d) for an illustration of safety ledges in a stormwater management basin.
[c] In new stormwater management basins, the maximum interior slope for an earthen dam, embankment, or berm shall not be steeper than 3 horizontal to 1 vertical.
(c) Variance or Exemption from Safety Standards. A variance or exemption from the safety standards for stormwater management basins may be granted only upon a written finding by the appropriate reviewing agency (municipality, county or Department) that the variance or exemption will not constitute a threat to public safety.

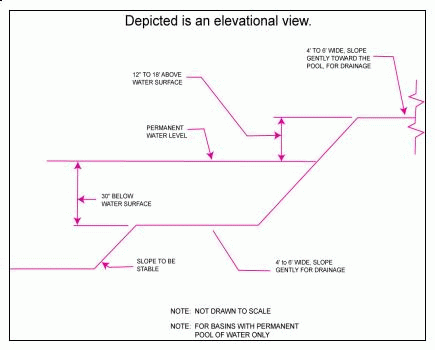

(d) Illustration of safety ledges in a new stormwater management basin.
(9) Requirements for a site development stormwater plan.
(a) Submission of site development stormwater plan.
[1] Whenever an applicant seeks municipal approval of a development subject to this subsection, the applicant shall submit all of the required components of the checklist for the site development stormwater plan at Subsection L(9)(c) below as part of the submission of the applicant's application for subdivision or site plan approval.
[2] The applicant shall demonstrate that the project meets the standards set forth in this subsection.
[3] The applicant shall submit six copies of the materials listed in the checklist for site development stormwater plans in accordance with Subsection L(9)(c).
(b) Site development stormwater plan approval. The applicant's site development project shall be reviewed as a part of the subdivision or site plan review process by the municipal board or official from which municipal approval is sought. That municipal board or official shall consult the engineer retained by the Planning Board and/or Zoning Board (as appropriate) to determine if all of the checklist requirements have been satisfied and to determine if the project meets the standards set forth in this subsection.
(c) Checklist requirements. The following information shall be required:
[1] Topographic base map. The reviewing engineer may require upstream tributary drainage system information as necessary. It is recommended that the topographic base map of the site be submitted which extends a minimum of 200 feet beyond the limits of the proposed development, at a scale of one inch equals 200 feet or greater, showing two-foot contour intervals. The map, as appropriate, may indicate the following: existing surface water drainage, shorelines, steep slopes, soils, erodible soils, perennial or intermittent streams that drain into or upstream of the Category One waters, wetlands and floodplains along with their appropriate buffer strips, marshlands and other wetlands, pervious or vegetative surfaces, existing man-made structures, roads, bearing and distances of property lines, and significant natural and man-made features not otherwise shown.
[2] Environmental site analysis. A written and graphic description of the natural and man-made features of the site and its environs. This description should include a discussion of soil conditions, slopes, wetlands, waterways and vegetation on the site. Particular attention should be given to unique, unusual, or environmentally sensitive features and to those that provide particular opportunities or constraints for development.
[3] Project description and site plan(s). A map (or maps) at the scale of the topographical base map indicating the location of existing and proposed buildings, roads, parking areas, utilities, structural facilities for stormwater management and sediment control, and other permanent structures. The map(s) shall also clearly show areas where alterations occur in the natural terrain and cover, including lawns and other landscaping, and seasonal high groundwater elevations. A written description of the site plan and justification of proposed changes in natural conditions may also be provided.
[4] Land use planning and source control plan. This plan shall provide a demonstration of how the goals and standards of Subsection L(3) through (6) are being met. The focus of this plan shall be to describe how the site is being developed to meet the objective of controlling groundwater recharge, stormwater quality and stormwater quantity problems at the source by land management and source controls whenever possible.
[5] Stormwater management facilities map. The following information, illustrated on a map of the same scale as the topographic base map, shall be included:
[a] Total area to be paved or built upon, proposed surface contours, land area to be occupied by the stormwater management facilities and the type of vegetation thereon, and details of the proposed plan to control and dispose of stormwater.
[b] Details of all stormwater management facility designs, during and after construction, including discharge provisions, discharge capacity for each outlet at different levels or detention and emergency spillway provisions with maximum discharge capacity of each spillway.
[6] Calculations.
[a] Comprehensive hydrologic and hydraulic design calculations for the predevelopment and postdevelopment conditions for the design storms specified in Subsection L(4).
[b] When the proposed stormwater management control measures (e.g., infiltration basins) depends on the hydrologic properties of soils, then a soils report shall be submitted. The soils report shall be based on on-site boring logs or soil pit profiles. The number and location of required soil borings or soil pits shall be determined based on what is needed to determine the suitability and distribution of soils present at the location of the control measure.
[7] Maintenance and repair plan. The design and planning of the stormwater management facility shall meet the maintenance requirements of Subsection L(10).
[8] Waiver from submission requirements. The municipal official or board reviewing an application under this subsection may, in consultation with the Municipal Engineer, waive submission of any of the requirements in Subsection L(9)(c)[1] through [9] when it can be demonstrated that the information requested is impossible to obtain or it would create a hardship on the applicant to obtain and its absence will not materially affect the review process.
(10) Maintenance and repair.
(a) Applicability. Projects subject to review as in Subsection L(1)(c) shall comply with the requirements of Subsection L(10)(b) and (c).
(b) General maintenance.
[1] The design engineer shall prepare a maintenance plan for the stormwater management measures incorporated into the design of a major development.
[2] The maintenance plan shall contain specific preventative maintenance tasks and schedules; cost estimate, including estimated cost of sediment, debris, or trash removal; and the name, address, and telephone number of the person or persons responsible for preventive and corrective maintenance (including replacement). Maintenance guidelines for stormwater management measures are available in the New Jersey Stormwater Best Management Practices Manual. If the maintenance plan identifies a person other than the developer (for example, a public agency or homeowners' association) as having the responsibility for maintenance, the plan shall include documentation of such person's agreement to assume this responsibility, or of the developer's obligation to dedicate a stormwater management facility to such person under an applicable ordinance or regulation.
[3] Responsibility for maintenance shall be assigned or transferred to the owner or tenant of an individual property in a residential development or project, unless such owner or tenant owns or leases the entire residential development or project.
[4] If the person responsible for maintenance identified under Subsection L(10)(b)[2], above, is not a public agency, the maintenance plan and any future revisions based on Subsection L(10)(b)[7], below, shall be recorded upon the deed of record for each property on which the maintenance described in the maintenance plan must be undertaken.
[5] Preventative and corrective maintenance shall be performed to maintain the function of the stormwater management measure, including repairs or replacement to the structure; removal of sediment, debris, or trash; restoration of eroded areas; snow and ice removal; fence repair or replacement; restoration of vegetation; and repair or replacement of nonvegetated linings.
[6] The person responsible for maintenance identified under Subsection L(10)(b)[2], above, shall maintain a detailed log of all preventative and corrective maintenance for the structural stormwater management measures incorporated into the design of the development, including a record of all inspections and copies of all maintenance-related work orders.
[7] The person responsible for maintenance identified under Subsection L(10)(b)[2], above, shall evaluate the effectiveness of the maintenance plan at least once per year and adjust the plan and the deed as needed.
[8] The person responsible for maintenance identified under Subsection L(10)(b)[2], above, shall retain and make available, upon request by any public entity with administrative, health, environmental, or safety authority over the site, the maintenance plan and the documentation required by Subsection L(10)(b)[6] and [7], above.
[9] The requirements of Subsections L(10)(b)[3] and [4] do not apply to stormwater management facilities that are dedicated to and accepted by the municipality or another government agency.
[10] In the event that the stormwater management facility becomes a danger to public safety or public health, or it is in need of maintenance or repair, the municipality shall so notify the responsible person in writing. Upon receipt of that notice, the responsible person shall have 14 days to effect maintenance and repair of the facility in a manner that is approved by the Municipal Engineer or his designee. The municipality, in its discretion, may extend the time allowed for effecting maintenance and repair for good cause. If the responsible person fails or refuses to perform such maintenance and repair, the municipality or county may immediately proceed to do so and shall bill the cost thereof to the responsible person.
**Webmasters Note: The previous subsection, L., has been amended as per Ordinance No. 2007:27.
