§ 190-50.3 Alternate Design Pilot Program Treatment System
| |||||||
(a) The proposed development to be served by the system is residential and is otherwise permitted pursuant to the provisions of this Ordinance;
| |||||||
(b) The design of the system and its discharge point, and the size of the entire contiguous parcel on which the system or systems is located will ensure that ground water exiting from the entire contiguous parcel or entering a surface body of water will not exceed two parts per million nitrate/nitrogen calculated pursuant to the Pinelands dilution model dated December, 1993, as amended, subject to the provisions of subsection (6)(c) below. The entire contiguous parcel may include any contiguous lands to be dedicated as open space as part of the proposed development but may not include previously dedicated road rights-of-way or any contiguous lands that have been deed restricted pursuant to other sections of this Ordinance;
| |||||||
(c) Only contiguous lands located within the same zoning district and Pinelands Management Area as the proposed system or systems may be utilized for septic dilution purposes, except for the development of an individual single family dwelling on a lot existing . as of January 14, 1981;
| |||||||
(d) The depth to seasonal high water table is at least five (5) feet;
| |||||||
(e) Any potable water well will be drilled and cased to a depth of at least one hundred (100) feet, unless the well penetrates an impermeable clay aquiclude, in which case the well shall be cased to at least fifty (50) feet;
| |||||||
(f) No more than ten (10) alternate design pilot program treatment systems utilizing the same technology shall be installed in the development of any parcel if those systems are each serving one single family dwelling;
| |||||||
(g) Each system shall be equipped with automatic dialing capability to the manufacturer, or its agent, in the event of a mechanical malfunction;
| |||||||
(h) Each system shall be designed and constructed so that samples of effluent leaving the alternate design pilot program septic system can be readily taken to confirm the performance of the technology;
| |||||||
(i) The manufacturer or its agent shall provide to each owner an operation and maintenance manual approved pursuant to N.J.A.C. 7:50-10.22(a)2iv;
| |||||||
(j) Each system shall be covered by a five-year warranty and a minimum five-year maintenance contract consistent with those approved pursuant to N.J.A.C. 7:50-10.22(a)2v that cannot be cancelled and is renewable and which includes a provision requiring that the manufacturer or its agent inspect that system at least once a .year and undertake any maintenance or repairs determined to be necessary during any .such inspection or as a result of observations made at any other time;
| |||||||
(k) The property owner shall record with the deed to the property a notice consistent with that approved pursuant to N.J.A.C. 7:50-10.22(a)2vi that identifies the technology, acknowledges the owner's responsibility to operate and maintain it in accordance with the manual required in (6)(i) above, and grants access, with reasonable notice, to the local board of health, the Commission and its agents for inspection and monitoring purposes. The recorded deed shall run with the property and shall ensure that the maintenance requirements are binding on any owner of the property during the life of the system and that the monitoring requirements are binding on any owner of the property during the period the monitoring requirements apply pursuant to the pilot program or any subsequent regulations adopted by the Commission that apply to said system; and
| |||||||
(l) No system shall be installed after August 5, 2007.
| |||||||
**Webmasters Note: The previous section has been added as per Ordinance No. 19-2003. | |||||||
§190-50.4 Recreation Facilities in Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters and Pinelands Area
| |||||||
A. It is the general purpose and intent of the recreation requirements for Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters as defined in subsection O and residential development in any Pinelands Area of the Township as defined in subsection O that all such new residential developments provide recreational facilities as part of the overall recreation program of the Township; that passive and active recreation are of equal importance and both serve legitimate municipal health, safety and welfare purposes; that to the extent feasible, central recreation facilities owned and maintained by the Township are generally accessible to the majority of Township residents and active recreation be centrally located in close proximity to existing Township owned recreation lands; and the active recreation, designed or located such that the potential users of said facilities are limited to a certain development or portion thereof, be owned and maintained by private homeowner's associations.
| |||||||
B. For all Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters and all residential development in any Pinelands Area of the Township, the applicant shall propose adequate recreational facilities to serve the population of the development. The developer's recreation plans shall be submitted to the Planning Board or Zoning Board, as the case may be, for its review and approval. The Board will seek advice from other boards or advisory committees, and it shall be guided in its review of the needs of individual developments by the standards set forth herein and by the goals and objectives of the Master Plan.
| |||||||
For the purposes of this section, the number of persons generated per development for recreational needs assessment purposes shall be determined as follows: | |||||||
1. Residential Unit Types:
| |||||||
a. Single-Family Dwelling = 3.5 persons | |||||||
b. Townhouse/Condominium = 2.75 persons | |||||||
c. Apartments = 2.25 persons | |||||||
2. Age Restricted and/or Senior Citizen Housing*
| |||||||
a. Single-Family Dwelling = 2 persons | |||||||
b. Townhouses = 2 persons | |||||||
c. Condominium/ Apartments: | |||||||
i. 1 Bedroom = 1 person | |||||||
ii. 2 Bedroom = 1.5 persons | |||||||
* Units must be in an age-restricted/senior citizen community development to qualify for the lower "per person" calculation. "Assisted Living" facilities are exempt from recreational requirements. | |||||||
C. Determining the need for recreation facilities in certain areas of the Township shall be as follows:
| |||||||
1. In determining the need for recreation facilities in all residential development in the Pinelands Area of the Township, the Township adopts the guidelines for recreation land and facilities as designated by the Pinelands Protection Act, N.J.S.A. 13:18A-1 et seq. and regulated through the Pinelands Comprehensive Management Plan, N.J.A.C. 7:50-1 et seq.
| |||||||

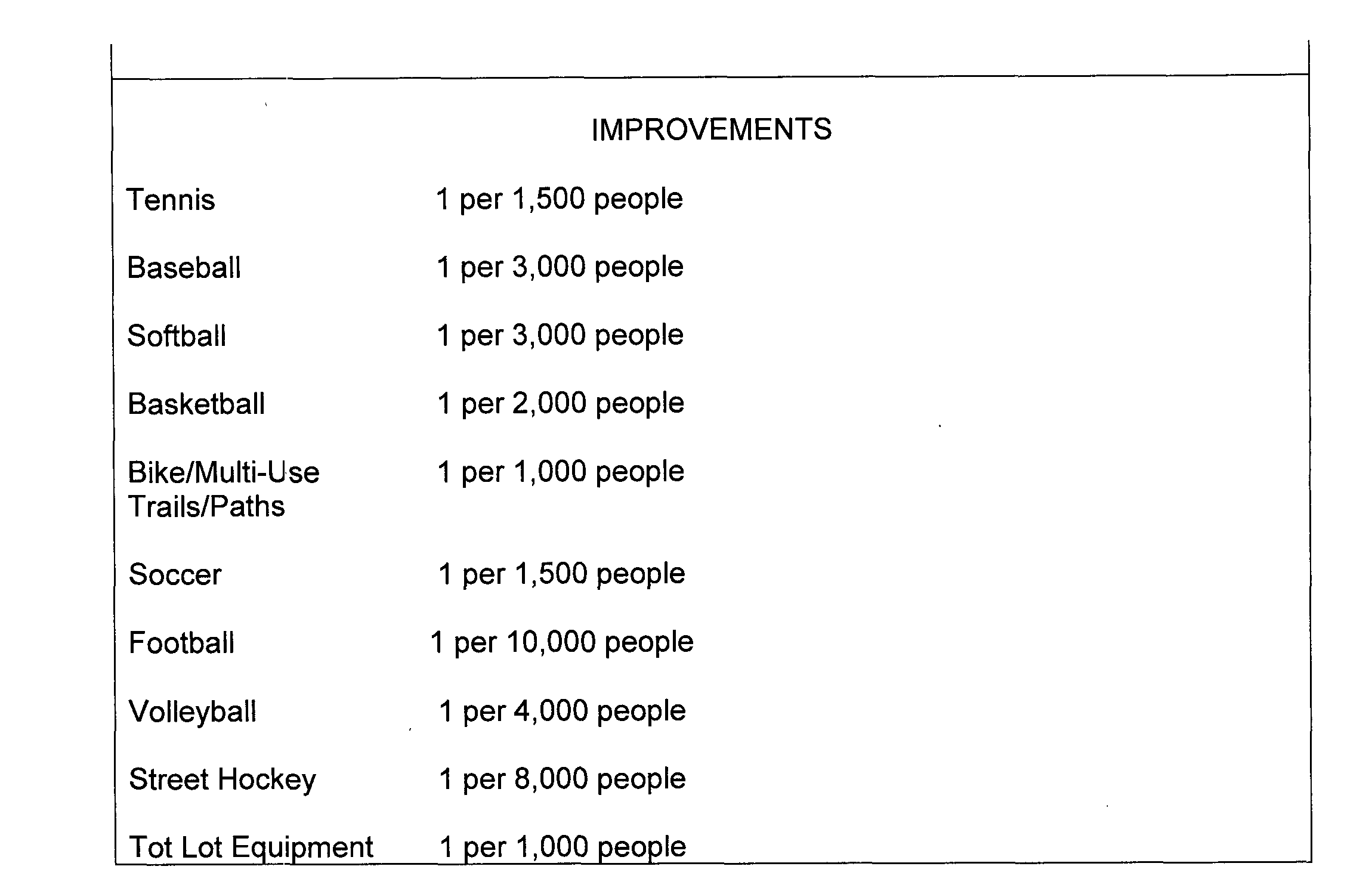

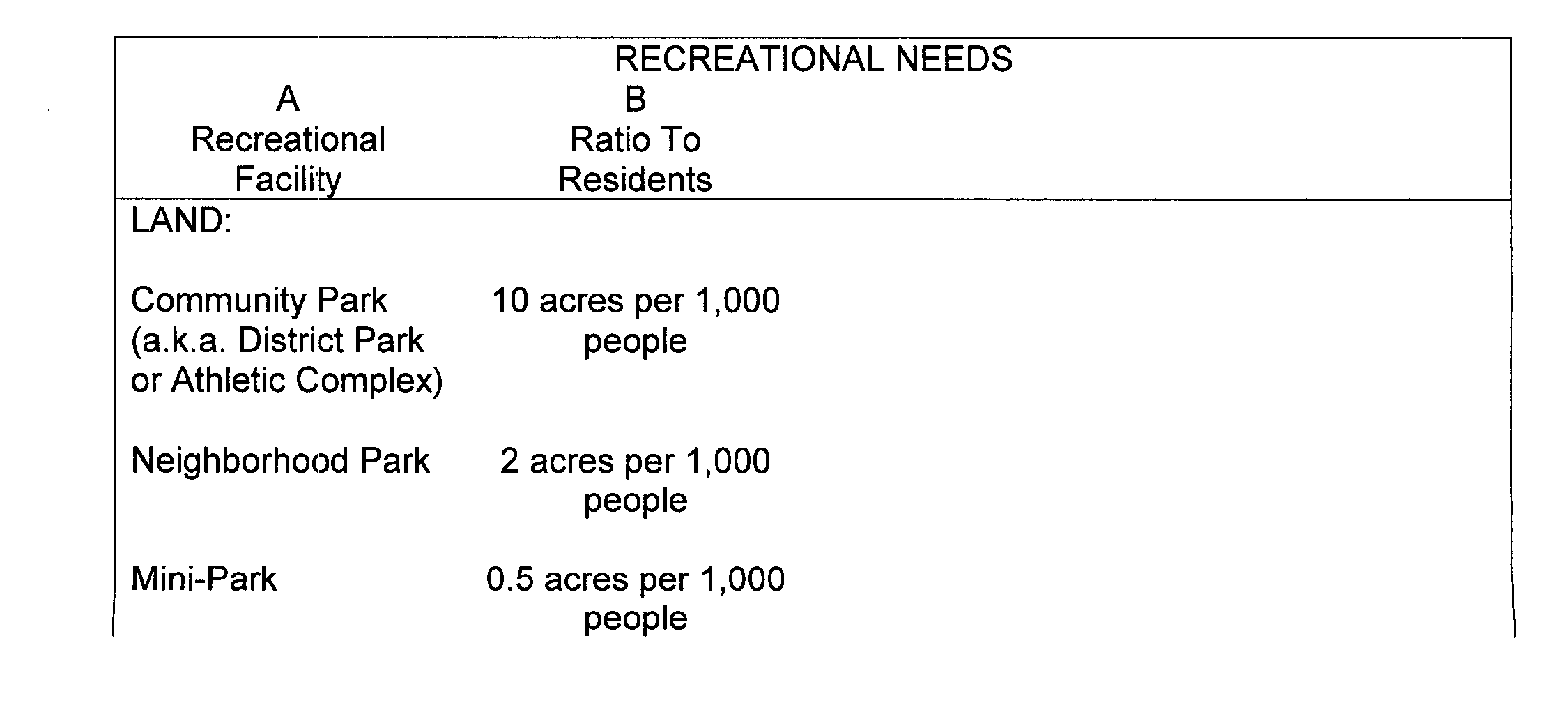

2. In determining the need for recreational facilities in Planned Unit Developments, Planned Unit Residential Developments and Residential Clusters, the Township herein adopts community-wide standards for parks, open space and recreational facilities, as set forth by the National Recreation and Park Association (NRPA), latest published guidelines. The NRPA provides both "level of service" and "population-based" standards. The Township believes that the "level of service" approach is more appropriate for urbanized communities that serve larger and more diverse constituencies. Therefore, the Township has adopted the "population-based" standard, where the need assessment can be more easily determined, thereby providing the most efficient means to determine and plan for the recreational requirements of the Township. It has modified such "population-based" standards where, in the opinion of the Township and its planner, said modifications are appropriate based on the unique needs and characteristics of the township, and the Township's operational and maintenance capabilities regarding recreational sites and facilities. The requirements under this section are as follows:
| |||||||
![]() | |||||||
![]() | |||||||
* Recreation facilities for age-restricted/senior citizen community developments shall meet the specific recreational needs of the residents of the communities. Not less than three (3) acres of open space should be reserved for development of clubhouse facilities, swimming pools, tennis courts, jogging areas, etc. | |||||||
D. In order to provide for the safety and general welfare of the public, all Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters and all residential development in the Pinelands Area of the Township shall set aside areas, for off-street recreation and/or play areas. The recreation areas required in this section shall not include easements, stormwater controls, detention facilities or right-of-way areas. The Planning Board or Zoning Board, as the case may be, shall review the submitted common open space plan in the context of the particular development proposal, the particular characteristics of the subject land area, and the ability, desirability and practicality of relating the proposed recreational facilities to adjacent and nearby lands. In any case, the lands shall be improved as may be necessary to best suit the purpose(s) for which they are intended.
| |||||||
E. In the designation of the required open space and the uses proposed thereon, the developer shall be guided by the following:
| |||||||
1. Common open space to be administered by a Homeowner's Association shall be distributed throughout the proposed development so that as many residential dwelling units as is practicable abut and have direct access to the common open space.
| |||||||
2. The protection of environmentally fragile and important resource land areas such as aquatic buffer areas, 500 year floodplain and treed acreage is a high priority.
| |||||||
3. Recreational sites shall be contiguous, useful and usable parcels and not small, fragmented and isolated pieces of land.
| |||||||
F. Any area which is specifically required and designated for active recreational purposes shall be fully usable for that purpose and shall have all improvements required by this section. All recreation areas and facilities shall be designed in accordance with the Americans with Disabilities Act.
| |||||||
G. Should the proposed development consist of a number of development stages, the Planning Board or Zoning Board, as the case may be, may require that passive recreation acreage proportionate in size to the development stage being considered for final approval for that particular development stage, even though these lands may be located in a different section of the overall development.
| |||||||
H. Passive recreation areas may be offered by deed to the Township or dedicated as common open space to a Homeowner's Association or other open space organization.
| |||||||
1. If the applicant proposes that the open space shall be dedicated to the Township, the Planning Board or Zoning Board, as the case may be, shall forward such request with its recommendation to the Township Council prior to the granting of preliminary approval of any development application containing the subject passive recreation area.
| |||||||
2. All passive recreation areas not offered to and/or not accepted by the Township shall be owned and maintained by a Homeowner's Association or other passive recreation organization as provided in N.J.S.A. 40:55D-43. Such organization shall not be dissolved, nor shall it dispose of any common open space by sale or otherwise.
| |||||||
I. The Board may require a developer to make certain site preparation improvements to the passive recreation areas. These may include the following:
| |||||||
1. Removal of dead trees or diseased trees.
| |||||||
2. Thinning of trees or other growth to encourage more desirable growth.
| |||||||
3. Grading and Seeding.
| |||||||
4. Improvements of protection of the natural drainage system by the use of protective structures, stabilization measures and similar improvements.
| |||||||
J. Development of recreational facilities shall proceed at the same rate as development of the dwelling units. To assure compliance with the Subsection, the Planning Board shall require the approval of an open space and recreational amenity phasing map which shall become part of an overall phasing plan and approval for any subdivision, planned and/or clustered development.
| |||||||
K. Reserved.
| |||||||
L. All low and moderate-income residential developments approved as part of the adopted Housing Plan element of the Master Plan and complying with all Council on Affordable Housing requirements, are exempt from the requirements of this section.
| |||||||
M. Site plans and details for all recreation facilities for all proposed Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters and all residential development in the Pinelands Area of the Township shall be reviewed and approved by the Planning/Zoning Board Professional Staff. Facilities shall be designed in accordance with applicable standards governing the particular recreational facility proposed.
| |||||||
N. The following minimum standards apply to all recreation areas in Planned Unit Developments, Planned Unit Residential Developments and/or Residential Clusters and all residential development in the Pinelands Area of the Township:
| |||||||
1. All recreation facilities shall be designed with minimum grades to facilitate access by people with handicapping conditions in accordance with ADA standards.
| |||||||
2. Concrete and bituminous sidewalks, not less than five feet wide, shall be constructed to connect recreation facilities with adjacent parking lots and residential sidewalks. Buffer trees and maintenance-free ground cover shall be placed in the open space access area when the sidewalk is contained in an open space access less than fifty feet wide and is between residential lots. Such sidewalks shall be constructed to the actual playing facility and spectator areas.
| |||||||
3. Four inch concrete pads shall be placed under all benches and picnic tables and extend four feet out on the three sides and one foot to the rear to provide a stable area for wheelchairs to reduce lawn maintenance and to provide a continuous connection to the walkways.
| |||||||
4. Evergreen buffer plantings shall be provided wherever necessary to crate a visual and noise barrier between adjacent residential dwellings, as approved by the Planning Board/ Zoning Board.
| |||||||
5. Landscaping of recreation areas shall be with maintenance free plant material as approved by the Planning/Zoning Board Professional Staff.
| |||||||
6. All facilities shall be designed in accordance with barrier free design regulations.
| |||||||
7. The following standards shall be followed for designing facilities to meet the needs of handicapped person:
| |||||||
a. Provide handicapped parking stalls with ramps. | |||||||
b. Provide barrier-free routes of travel with no obstructions and minimal grade changes. | |||||||
c. Plantings next to walkways shall be species selected that will not interfere with handicapped travel. | |||||||
d. All routes of travel, pedestrian and vehicular, shall be illuminated wherever use after dark is anticipated. Lighting intensity and design to be approved by the Planning/Zoning Board Professional Staff. | |||||||
e. The quantity and location of gate openings shall be as determined by the Planning/Zoning Board Professional Staff. Gate handles shall be located thirty-two inches from the ground, and sixteen inch high metal kick-plates shall be provided across the entire width of the gate. | |||||||
8. Stormwater management areas shall be designed for recreation areas in accordance with New Jersey's Stormwater Management rules (N.J.A.C. 7:8) and "The New Jersey Stormwater Best Management Practices Manual". All facilities shall be approved by the Township Engineer.
| |||||||
9. All recreation structures, equipment, facilities and surface materials will be purchased, built and installed and per ASTM standards and follow CPSC guidelines.
| |||||||
10. Surface materials shall include certified triple-shredded mulch PEA gravel or unitary surfacing material (no sand will be permitted).
| |||||||
11. All surface materials installed shall also have a means of containment around the play zone.
| |||||||
12. Every effort shall be made to not use chain link fence to separate a play area or entire recreation facility. Split rail fencing and natural vegetation/evergreen buffer shall be used.
| |||||||
13. Proper shading shall be provided near the play area especially over sitting areas found at the perimeter.
| |||||||
O. Definitions. For purposes of this ordinance, unless the context clearly indicates a different meaning:
| |||||||
|
